Rockfall Protective Net

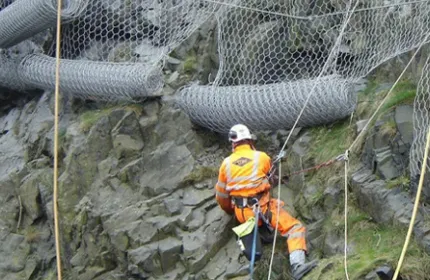

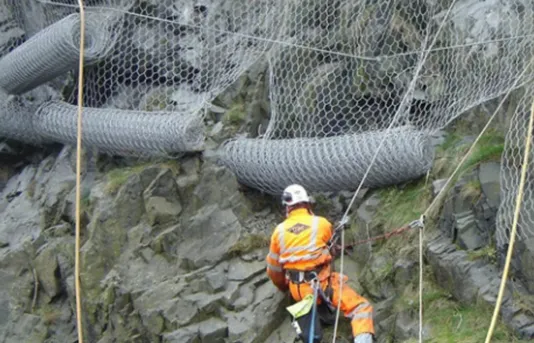

Rockfall netting is made of a continuous roll of triple twisted'mesh which can be made in different mesh and wire combinaions to suit the type of rock being supported,Unlike chain link mesh.the strona 'triple twisted'mesh will not unravel if one of the mesh wires should break.Individual rolls are wired together to form a curtain to control the fall of loose rock and to encourage stability of the rock face by promoting vegetation.
Advantages of Rockfall Netting:
1、Mesh does not unravel if one of the wires should fail
2、High tension and punching stress resistance
3、Maximun continunity at joints without the need to overlap mesh panels
4、Low installation costs
|
Mesh Sizes(mm) |
Rockfall Netting |
Tolerance |
Wire Diameter |
|
|
(m)Length |
(m)Width |
|||
|
60x80 |
20~100 |
1~4 |
Length±5% Width±5% Depth±5% |
Heavily galvanised or galfan coated wire 2.00,2.20,2.40,2.70,3.00OR PVC coated on Heavily Galvanised or Galfan coated wire 2.0/3.0,2.2/3.2,2.4/3.4,2.7/3.7,2.0/4.0 |
|
80x100 |
20~120 |
1~4 |
||
|
100x120 |
20~120 |
1~4 |
||
|
120x150 |
20~120 |
1~4 |
||
